2 Zone Comparison · 2026

Best 2 Zone DIY Mini Split for 2026

A 2 zone DIY mini split runs two indoor heads from one outdoor condenser. This guide covers what makes a system genuinely DIY, compares the two brands that ship true pre-charged multi-zone kits (Zone Air and MRCOOL), explains which specs matter, and walks through real two-room configurations.

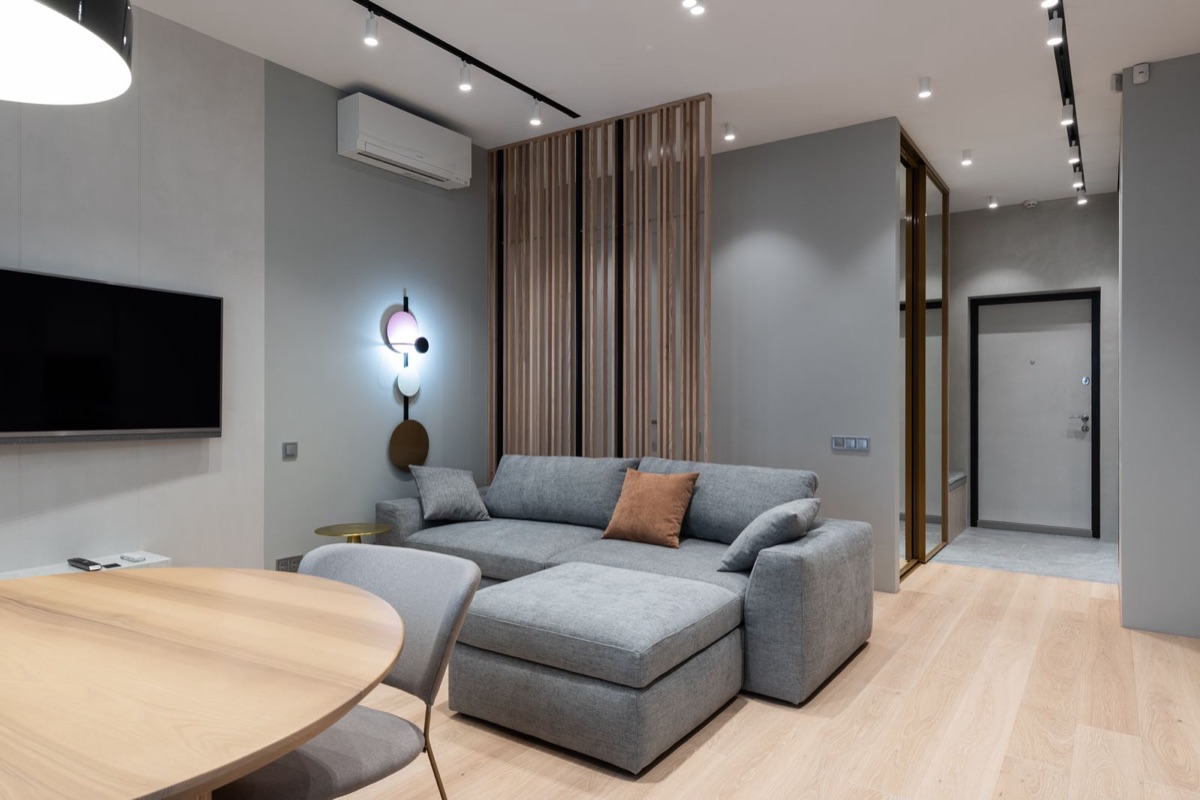

Modern living room with a wall-mounted mini split indoor unit, one of the two heads the best 2 zone DIY mini split runs from a single outdoor condenser

Quick Answer

Only two brands currently sell true pre-charged, quick-connect 2 zone kits: Zone Air and MRCOOL DIY. Our pick is the Zone Air DIY Series (up to 24 SEER2 on wall-mount pairs, −13°F heating, warranty valid for homeowner installs). MRCOOL DIY 5th Gen is the better fit if you want room to grow to as many as 6 zones on a condenser up to 36,000 BTU, or Hyper Heat models rated to −22°F.

Compare All DIY Brands

The Short Version

Quick Answer: Best 2 Zone DIY Mini Split in 2026

Both Zone Air and MRCOOL offer true DIY mini splits with pre charged line sets and quick connect fittings, meaning no vacuum pump or EPA license is required. On support reputation, MRCOOL's Trustpilot profile shows 3.2 out of 5 across 89 reviews (September 2026); Trustpilot ratings are user-submitted and worth reading alongside other sources.

For a typical 2 zone setup, two-zone heat pump systems typically require one outdoor unit connected to two indoor heads. Zone Air DIY systems achieve up to 24 SEER2 efficiency, with heating performance down to −13°F and a warranty that explicitly covers homeowner installation. Two-zone mini-splits can combine different BTU capacities for various room sizes and needs, such as pairing a 12,000 BTU head with an 18,000 BTU head on a single outdoor condenser rated at 24,000 to 36,000 BTU.

The rest of this article compares Zone Air, MRCOOL DIY 5th Gen, and the semi-DIY alternatives so you can match a system to your home.

Definitions

What Makes a True DIY Mini Split in 2026?

Most mini split systems labeled "DIY" online still require flare connections, manifold gauges, and licensed techs to handle refrigerant. That makes them semi-DIY at best. A true DIY mini split in 2026 removes all refrigerant-handling tasks from the homeowner.

Here's what qualifies a ductless mini split as genuinely DIY:

Factory pre charged line sets with a sealed refrigerant circuit, so no vacuum pump or EPA 608 license is required for installation

Quick connect fittings that open the refrigerant path when tightened, replacing brazing and flaring entirely

No gauges, no manifold set, no specialized tools needed for the refrigerant side

Zone Air and the MRCOOL DIY system both meet these criteria. Brands like Pioneer Diamante Pro and Senville LETO are sometimes marketed as DIY-friendly, but their line sets are flare-type and their manuals call for a vacuum pump, which in our view makes them semi-DIY at best

A true DIY install is realistic for a homeowner with moderate skills and basic tools (drill, level, wrenches), though local code may still require a licensed electrician depending on your area for the electrical work

Our Pick

Zone Air DIY Series 2 Zone Mini Splits

Zone Air is our recommendation for most 2 zone DIY installs. Its wall-mount pairs have the highest published efficiency among true DIY kits, the warranty terms are published and cover homeowner installation, and units get final assembly, testing, and inspection in the USA.

Capacity range: Every Zone Air 2 zone system runs on the same 27,000 BTU multi-zone condenser, which accepts up to 36,000 BTU of connected indoor capacity. Stock wall-mount pairings run from 18,000 BTU (9K + 9K) to 30,000 BTU (12K + 18K), including the common 12,000 + 12,000 BTU, 9,000 + 18,000 BTU, and 12,000 + 18,000 BTU combinations. These configurations suit homes, garages, bonus rooms, and home offices

Efficiency: Zone Air systems reach up to 24 SEER2 efficiency ratings on wall-mount dual-zone models (ceiling cassette pairs are rated 21 SEER2), with Energy Star ratings on select models. Ductless systems eliminate about 30% of central-air energy losses, so upgrading from an older unit translates to real savings

Cold climate performance: Models can maintain heating performance even at outdoor temperatures as low as −13°F, making a Zone Air 2 zone system viable as primary heat in many US climate zones, delivering all season comfort without backup heat strips

True DIY design: The Quick Connect line set is pre charged with R-454B refrigerant. No vacuum pump, no gauges, no EPA license. Easy installation for a careful homeowner with basic tools. The Gold Fin condenser coating protects against corrosion in harsh environments

Warranty and support: 7-year compressor, 5-year parts warranty that remains valid under homeowner installation. US-based live support (7 AM–7 PM MST) helps with sizing and troubleshooting

US assembly: Zone Air units undergo final assembly, testing, and inspection in the USA from globally-sourced components, offering tighter quality control than most imported DIY mini split brands

Indoor unit flexibility: 2 zone Zone Air systems are available in wall-mounted air handler, ceiling cassette, and concealed-duct configurations, giving homeowners options for different room layouts

Also Consider

MRCOOL DIY 5th Gen 2 Zone Systems

The MRCOOL DIY 5th Gen offers multi zone options supporting 2 to 6 zones and condensers from 9,000 to 36,000 BTU.

Key features: MRCOOL DIY systems use pre charged line sets for easy installation, MRCOOL DIY systems require no specialized tools for installation, and the MRCOOL DIY 5th Gen series tops out around 23.6 SEER2 on its most efficient configuration. Optional Hyper Heat models with heating down to about −22°F are available for colder climates

Multi zone and capacity: MRCOOL DIY systems support 2 to 6 zones with common 2 zone pairings like 18,000 + 9,000 BTU. A 36,000 BTU outdoor unit handles larger homes, and MRCOOL DIY systems can cover areas up to 2,290 sq ft

Energy Star: Energy Star certification applies only to select MRCOOL models, so readers must check individual product listings before assuming coverage

Pros for 2 zone buyers: Smart controls compatible with Google Assistant, support for up to 6 zones, and both wall mount and ceiling cassette air handler options. Installation of MRCOOL DIY systems can be completed in a few hours

Cons: Top efficiency (about 23.6 SEER2) is slightly below Zone Air's wall-mount pairs, Energy Star coverage varies by model, and support reviews are mixed

Best for: buyers who plan to expand past two zones (up to 6) on a larger condenser, or need Hyper Heat's −22°F rating for very cold winters

Buying Criteria

Key Specs to Look For in a 2 Zone DIY Mini Split (2026)

Whether you go with Zone Air or another brand, these are the numbers that matter when evaluating any 2 zone DIY mini split system.

Capacity: Typical 2 zone setups range from 18,000 to 36,000 BTU total. A 12,000 BTU model typically covers about 550 sq ft. Choose system size based on room square footage and layout. For two 300–400 sq ft rooms, 18,000 BTU total may suffice; for two large open zones, you may need up to 36,000 BTU

Efficiency: Inverter technology allows for higher efficiency with SEER ratings ranging from 21 to 24. Look for at least 20 SEER2 in 2026. Zone Air's wall-mount pairs reach about 24 SEER2 and MRCOOL's DIY 5th Gen about 23.6. Multi-zone systems improve comfort and reduce energy waste

Cold climate capability: Look for cold climate models or hyper heat units that maintain strong capacity at low temps. Zone Air is rated to −13°F; MRCOOL's standard DIY 5th Gen line is rated to about −13°F as well, and MRCOOL Hyper Heat models operate down to −22°F. Critical if you're in a northern climate

Voltage: Smaller 9,000–12,000 BTU heads sometimes run on 115V circuits. Larger 24,000 to 36,000 BTU 2 zone outdoor condensers typically require 230V circuits and a dedicated breaker

Line set and communication wire: Verify maximum combined line set length allowed per manufacturer (Zone Air supports up to 75 ft per zone). Each indoor unit needs separate line sets and signal wiring to the outdoor unit. Plan routing before buying

Air handler types: Wall-mounted air handlers are easiest to install and least expensive. Ceiling cassette units work well for spaces where wall mounting isn't ideal (e.g., finished basements). Most mini splits allow mixing head types in a 2 zone design. Each indoor unit controls a separate room or zone, giving you independent temperature control to avoid energy waste by preventing conditioning of unused spaces

Real-World Setups

Example 2 Zone Configurations

These concrete examples use Zone Air DIY units sized for common real-world scenarios. All use pre charged R-454B lines, so no vacuum pump is needed, and both heads offer independent temperature control.

Small home (living + master bedroom, ~800–1,000 sq ft): The 24,000 BTU dual-zone system, two 12,000 BTU wall-mounted air handlers on the 27K condenser. At ~24 SEER2, this setup can cut cooling costs 20–40% compared to an older 13–16 SEER central system

Open plan + home office: The 27,000 BTU dual-zone system, pairing one 18,000 BTU air handler for a large living/kitchen zone and one 9,000 BTU head for a single room home office. The smaller head runs efficiently when only the office needs heating and cooling

Garage + bonus room: A custom build on the 27K condenser pairing one 12,000–18,000 BTU wall unit for the garage with one 9,000–12,000 BTU ceiling cassette for an upstairs bonus room, both using pre charged line sets (Zone Air's bundle builder lets you mix head styles). A common fit for spaces central HVAC doesn't reach

Upper capacity: 36,000 BTU of connected indoor capacity is the ceiling for Zone Air's 27K multi-zone condenser, and the largest stock 2 zone pairing is 30,000 BTU (12K + 18K). That range suits larger open-plan homes or whole home supplemental heating and cooling across multiple rooms

The Install

2 Zone DIY Installation Overview: From Mount to Startup

This is a practical, high-level walkthrough of installing a 2 zone DIY mini split. The steps focus on Zone Air but apply broadly to any true DIY system. Installation can be completed in a few hours by one homeowner with moderate skills. Basic tools like a drill and wrench are sufficient for setup. For the full step-by-step, see our DIY mini split installation guide.

Planning: Choose correct BTU capacity for each zone, accounting for sun exposure, ceiling height, insulation, and climate. Verify a dedicated electrical circuit exists or plan for one. Confirm line set lengths fit your layout with minimal bends

Mounting: Install mounting brackets or ceiling cassette frames indoors. Drill 3-inch pass-through holes for the line set, condensate drain, and communication wire. Set correct clearances per the manual

Running lines: Route pre charged line sets and communication wire from the outdoor condenser to both indoor units. Avoid kinking or over-bending. Follow the manufacturer's minimum bend radius specs

Quick connect: Tighten the quick connect fittings to open the pre charged refrigerant circuit. This replaces the traditional vacuum and charging steps that would otherwise require special tools

Electrical work: Connection to the outdoor unit may require a licensed electrician depending on local code, even though the refrigerant side is fully DIY. Verify breaker size, wire gauge, and disconnect requirements

Commissioning: Leak check all connections. Power up and test both zones in cooling and heating modes. Verify remote or app control for each indoor head. Read the install manual fully first

Head to Head

How the DIY Brands Compare for 2 Zones

This comparison focuses on 2 zone use cases, evaluating ease of install, efficiency, cold climate performance, and trust.

Zone Air vs MRCOOL: Zone Air and MRCOOL both offer pre charged line sets and quick connect fittings. Zone Air provides final assembly, testing, and inspection in the USA, up to 24 SEER2, and a −13°F heating floor. MRCOOL's DIY 5th Gen line tops out around 23.6 SEER2 and its standard models carry a comparable −13°F floor

MRCOOL strengths: Affordability, the DIY 5th Gen feature set, support for 2 to 6 zones, and MRCOOL Hyper Heat models that operate down to −22°F

Pioneer and Senville: Popular "DIY-friendly" ductless mini split options, but both use flare line sets that need a vacuum pump, and Senville's warranty requires a licensed HVAC professional for pressure testing and evacuation (Pioneer's warranty covers "properly installed" units and needs registration for full coverage). They are not true DIY in the same way

Big brands (Mitsubishi, Daikin, LG, Fujitsu): Offer high-end multi zone and hyper heat mini split systems, but zero true DIY mini splits with pre charged lines as of 2026. These require professional installation

For a genuinely DIY 2 zone install, the shortlist is Zone Air and MRCOOL. Pioneer and Senville make sense if you are willing to hire a tech for evacuation. See our DIY mini split brands comparison for the full field

FAQ

FAQ: 2 Zone DIY Mini Splits in 2026

Common beginner questions about 2 zone DIY mini split and ductless mini split systems, answered.

Can a homeowner legally install a 2 zone DIY mini split? Yes. Since the refrigerant circuit is factory sealed, no EPA 608 license is needed. However, electrical work (breaker, disconnect, wiring) may require a licensed electrician and permits depending on local code

How do I size a 2 zone system? Use an online BTU calculator that factors in room square footage, insulation, sun exposure, ceiling height, and climate zone. A 12,000 BTU head covers roughly 550 sq ft. For two average rooms totaling 800–1,200 sq ft, a 24,000 BTU (12K + 12K) dual-zone system is typically the right choice

Are hyper heat or cold climate models worth the extra cost? In colder climates with prolonged freezing temps, absolutely. MRCOOL's standard DIY 5th Gen line is rated to about −13°F and its Hyper Heat models operate down to −22°F. Zone Air's −13°F rating handles most US winters. If you rarely see temps below 0°F, standard models are sufficient

How does communication wire work? In multi zone systems, each indoor unit needs a separate communication wire run to the outdoor unit. This signal wiring lets the outdoor condenser modulate output to each zone independently

Is 36,000 BTU too big for 2 zones? It depends on your space. Oversizing leads to short cycling, poor dehumidification, and energy waste. But for two large zones or a whole home approach in a severe climate, 36,000 BTU may be exactly right

Can I mix ceiling cassette and wall-mount heads? Yes. Zone Air supports mixing air handler types in a 2 zone system when configured correctly through its bundle builder. This is specifically designed for scenarios like a bedroom wall unit paired with a finished basement cassette

Bottom Line

Our Recommendation for a 2 Zone DIY Mini Split

Our pick: Zone Air DIY Series. For most two-room DIY installs it offers the highest published efficiency in the true DIY class (up to 24 SEER2 on wall-mount pairs), a −13°F heating floor that matches MRCOOL's standard DIY line, and a warranty that covers homeowner installation. Choose MRCOOL DIY 5th Gen instead if a path to more zones (up to 6) or Hyper Heat's −22°F rating matters more to you.

Whichever brand you choose, size the system to your rooms (usually 18,000 to 36,000 BTU total), confirm Energy Star and cold-climate ratings on the specific model, and plan the electrical work before you buy.

See Zone Air 2 Zone Systems → Best Multi-Zone Mini Splits

Specifications, prices, warranty terms, and review figures cited here are manufacturer-published or third-party-published as of September 2026, are subject to change, and should be verified with the manufacturer before purchase. Trustpilot ratings reflect user-submitted reviews, not our own testing. MRCOOL® is a trademark of its owner; Best DIY Mini Split Brands is not affiliated with or endorsed by MRCOOL.
